Description

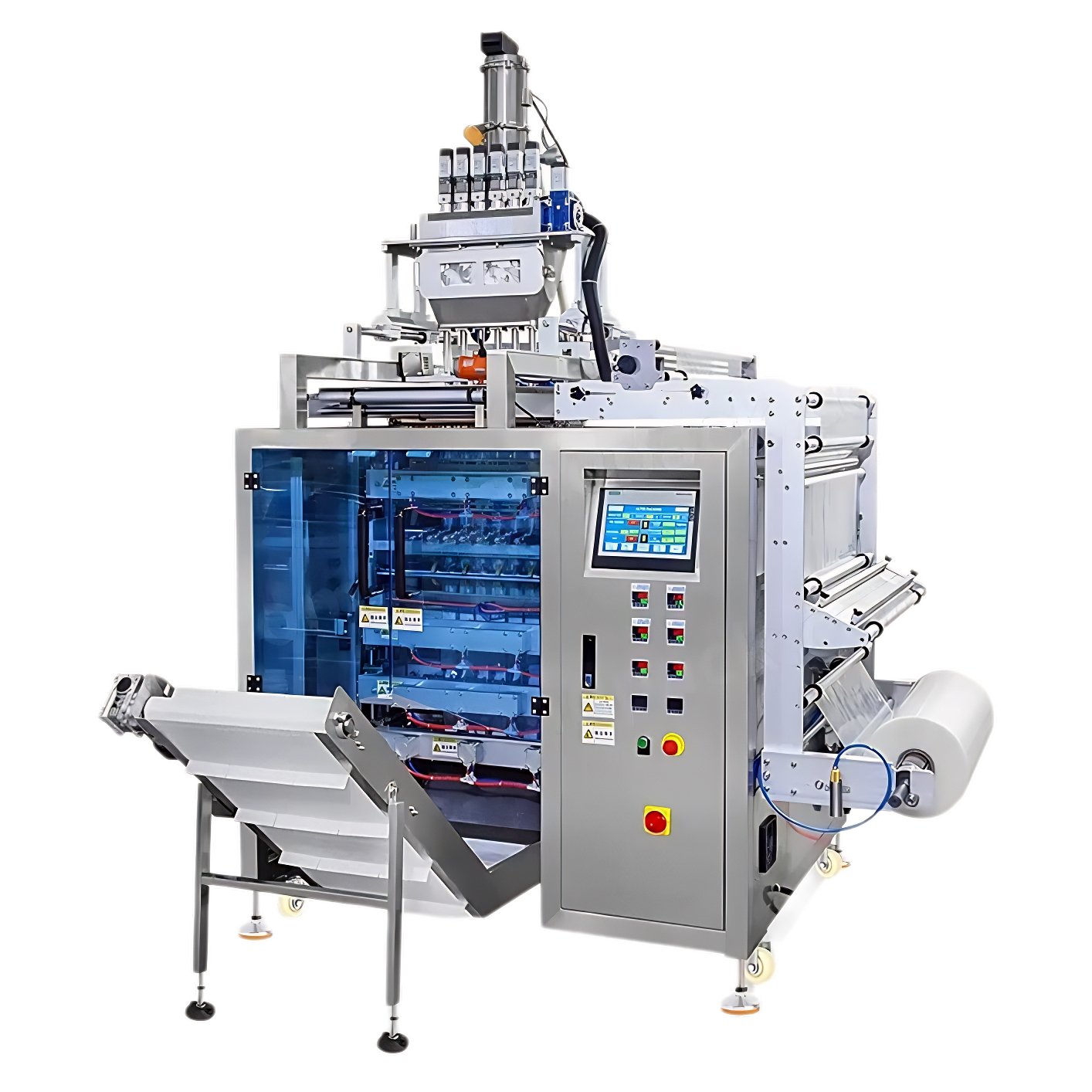

This multi-lane powder sachet packing machine is applicable for powdery raw materials measuring, sachets making, filling, sealing and cutting. It is for small volume measuring and small bags packaging. The precisely machined screw system is applicable for any fine powdery raw materials measuring, user can make slight change on filling weight through system. It comes with an independent smart temperature control on vertical and horizontal sealing for each lane, and the sealing temperature can be adjusted to accommodate packing film in different thickness and material. The package size is customizable according to demand. The model is able to make three sides seal sachet or four sides seal sachet with flat (straight) cutting or zigzag cutting. Continuous sachets can be produced under command from control system. It is widely used in food&beverage, pharmaceutical, nutraceutical and chemical industries.
The machine features with full automatic operation, high capacity production, highly stable performance, accurate measuring, low malfunction rate, and long life-span. It is applicable for the packaging of food powder, nutraceutical powder, and chemical powder. Such as milk powder, coffee powder, spice powder; protein powder, probiotic powder, superfood powder; bleaching powder, desiccant powder etc. The entire machine is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the multi-lane powder sachet packing machine enhances efficient and continuous production, reduces labor and improves outcome consistency.
Working Flow:
- Metal detection
- Powder material feeding
- Dust collecting
- Powder material measuring
- Packing film slitting
- Manufacutring dates printing
- Sachet forming
- Filling into sachet
- Sachet sealing
- Sachet cutting
- Sachet conveying
- Weight checking (if needed)
- Finished product conveying
Package and Application:
Video:
Technical Parameters:
| Machine Name | Multi-lane Powder Sachet Packing Machine |
| Machine Model | LY-MPS (Side Sealing) |
| Capacity | 30-40pcs/min/lane |
| Bag Dimension | Width: 35-120mm (1.37-4.72inches) Length: 40-180mm (1.57-7.08inches) |
| Measuring Range | <50g |
| Measure Head | Screw |
| Control System | PLC |
Services:
- Initial needs analysis, solution proposal according to needs
- Technical assessment and prototype verification
- Manufacturing, testing, debugging, pre-setting, shipping and delivering
- 24/7 technical support and life-time after sales service
- Packaging supplies testing and support
- Upgrades and modification support
