Description

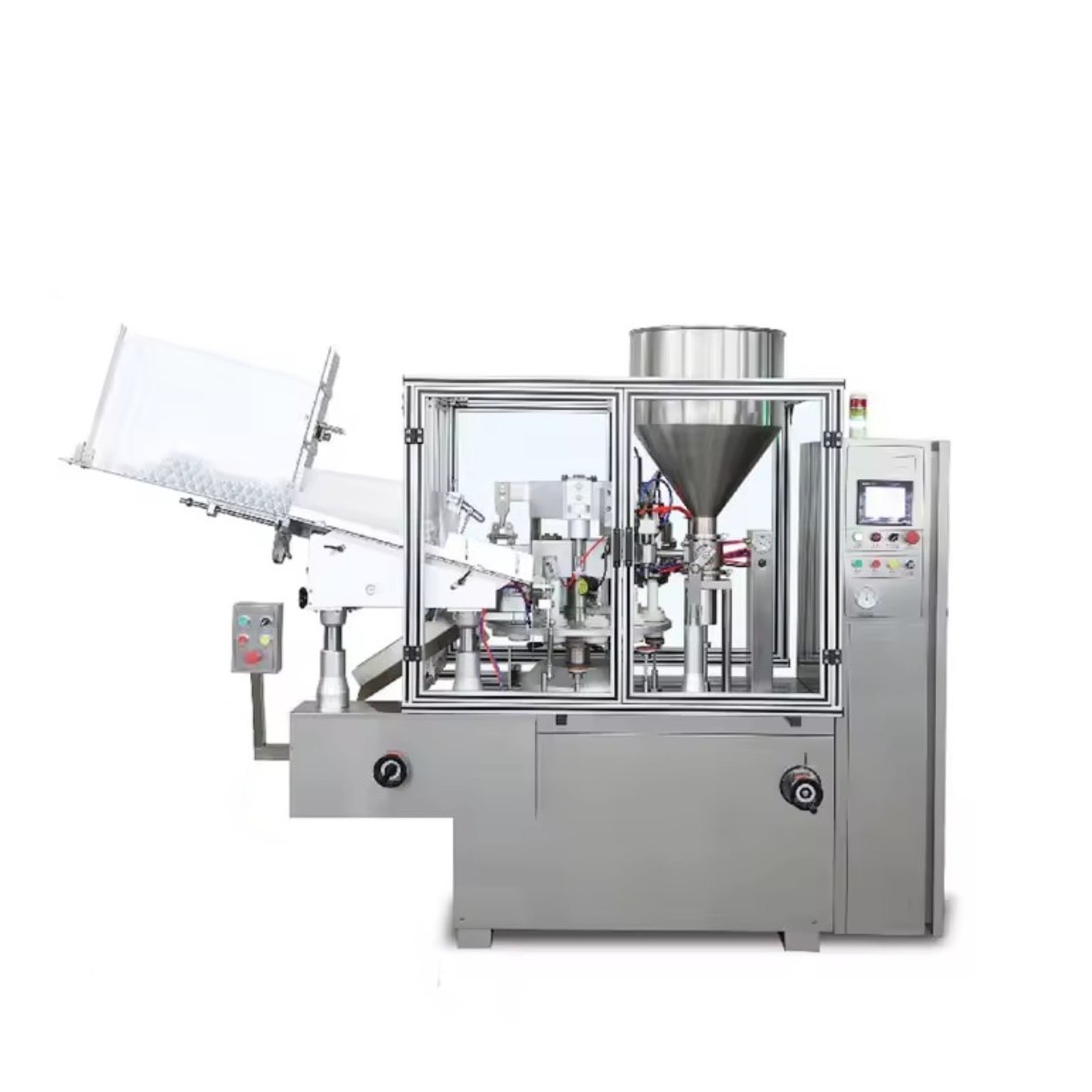

This automatic tube filling sealing machine is applicable for liquid raw materials measuring, tubes filling and tail sealing. The machine adopts a series of functions such as tube releasing, automatic color mark detecting, automatic filling, automatic tail sealing, automatic knife cutting, and automatic output of finished products. Different type of measuring pump is available according to the viscosity, thickness and fluidity of liquid product, user can make slight change on filling weight through measure head. The model is available in heat sealing system and ultrasonic sealing system. The ultrasonic sealing system makes a relatively firm tail sealing, also gives user the most flexibility in tube size changing, without the need of parts changing. It is widely used in food&beverage, pharmaceutical, nutraceutical and chemical industries.
The machine features with full automatic operation, high capacity production, highly stable performance, accurate measuring, low malfunction rate, and long life-span. It is applicable for the packaging of liquid products, such as toothpaste, face wash, cleaning gel, lotion, cream, shampoo, conditioner; paste, sauce, wasabi, mayonnaise etc. The entire machine is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the automatic tube filling sealing machine enhances efficient and continuous production, reduces labor and improves outcome consistency.
Working Flow:
- Liquid material mixing (if need) and feeding
- Liquid material measuring
- Tube releasing and placing on working station
- Manufacturing date printing
- Filling into tube
- Tube tail sealing
- Finished product conveying
Package and Application:
Video:
Technical Parameters:
| Machine Name | Automatic Tube Filling Machine |
| Machine Model | LY-TU200 |
| Capacity | 20-30pcs/min |
| Package Dimension | Tube Diameter: 30-100mm (1.18-3.93inches) Height: 50-200mm (1.96-7.87inches) |
| Measuring Range | 5-250ml |
| Measure Head | Pump |
| Control System | PLC |
Services:
- Initial needs analysis, solution proposal according to needs
- Technical assessment and prototype verification
- Manufacturing, testing, debugging, pre-setting, shipping and delivering
- 24/7 technical support and life-time after sales service
- Packaging supplies testing and support
- Upgrades and modification support
