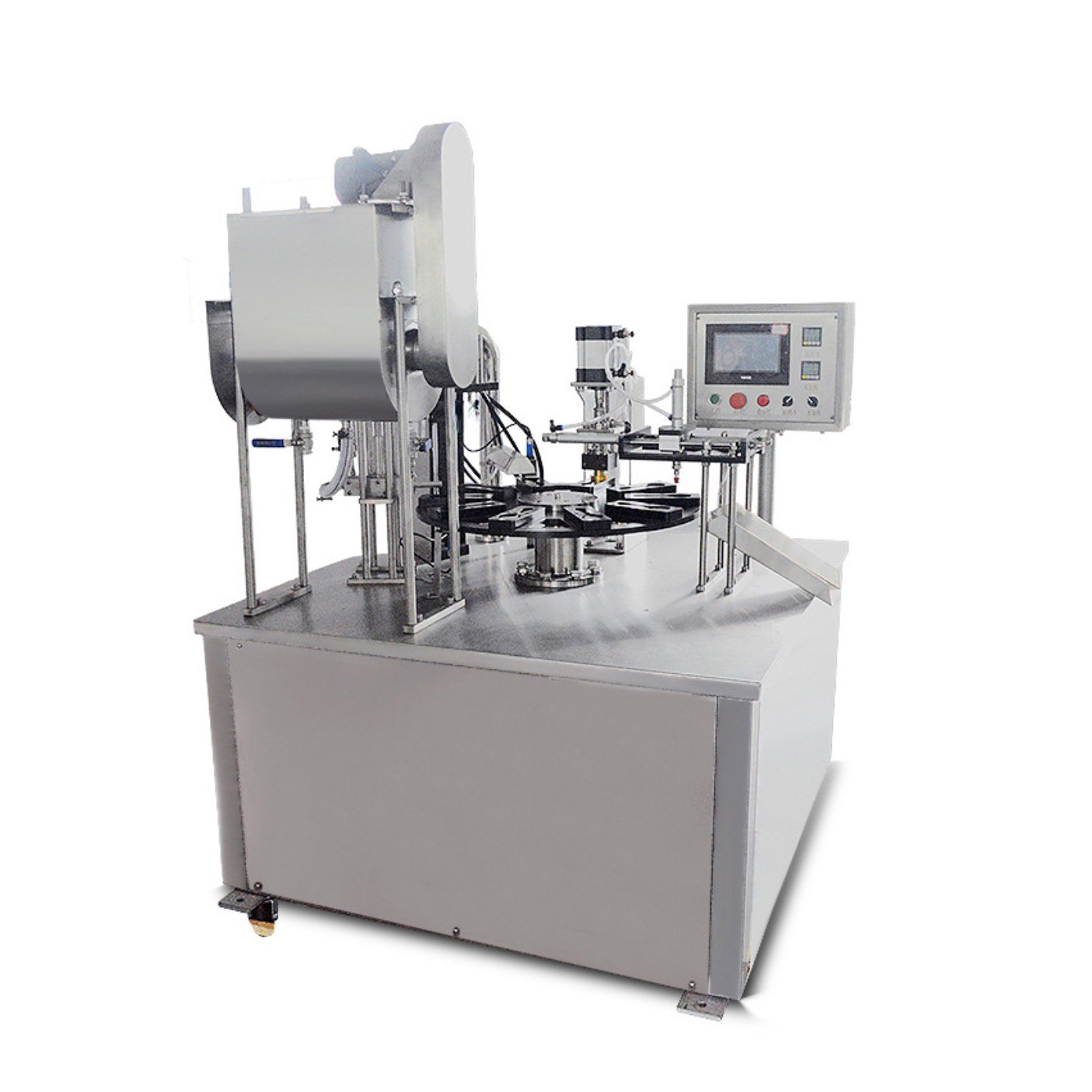

Description
This automatic liquid spoon filling sealing machine is applicable for liquid raw materials measuring, spoon filling and foil sealing. Different type of measuring pump is available according to the viscosity, thickness and fluidity of liquid product; user can make slight change on filling weight through measure head. It has a UV disinfection system to ensure hygiene of the packaging process. Number of filling head can be customized from one to four to meet different level of production capacity demand. The spoon package is innovative, portable, and convenient for consumers to use and stir their drinks. It is widely used in food&beverage, pharmaceutical, and nutraceutical industries.
The machine features with full automatic operation, high capacity production, highly stable performance, accurate measuring, low malfunction rate, and long life-span. It is applicable for the packaging of liquid products, such as honey, condensed milk, condensed coffee, condensed drinks/juice, jam, sauce, gel, serum etc. The entire machine is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the automatic liquid spoon filling sealing machine enhances efficient and continuous production, reduces labor and improves outcome consistency.
Working Flow:
- Liquid material mixing (if need) and feeding
- Liquid material measuring
- Spoon dropping
- Filling into spoon
- Foil lid fetching
- Foil lid sealing
- Manufacturing date printing
- Finished product conveying
Package and Application:
Video:
Technical Parameters:
| Machine Name | Automatic Liquid Spoon Filling Sealing Machine |
| Machine Model | LY-SF450 |
| Capacity | 15-18pcs/min |
| Measuring Range | 1-50ml |
| Measure Head | Pump |
| Control System | PLC |
Services:
- Initial needs analysis, solution proposal according to needs
- Technical assessment and prototype verification
- Manufacturing, testing, debugging, pre-setting, shipping and delivering
- 24/7 technical support and life-time after sales service
- Packaging supplies testing and support
- Upgrades and modification support
