Description

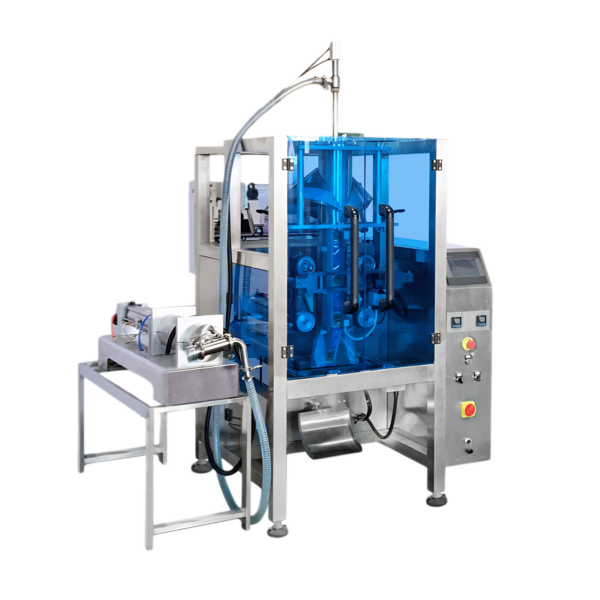

This automatic liquid bag packing machine is a large vertical form fill seal machine, for liquid products measuring and pillow bag packaging. Different type of measuring pump is available according to the viscosity, thickness and fluidity of liquid product, user can make slight change on filling weight through adjustment on measure head. There is a smart temperature control system for fine tune of both vertical and horizontal sealing temperature, making it compatible with any heat seal-able packaging film in different thickness and material. The package size is customizable within range. It is widely used in food&beverage, daily supplies, pharmaceutical, nutraceutical and chemical industries.
The machine features with full automatic operation, high capacity production, highly stable performance, accurate measuring, low malfunction rate, and long life-span. It is applicable for the packaging of liquid products, such as water, milk, oil, sauce, cream, gel etc. The entire machine is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the automatic liquid bag packing machine enhances efficient and continuous production, reduces labor and improves outcome consistency.
Working Flow:
- Liquid material mixing (if needed) and feeding
- Liquid material measuring
- Packing film feeding
- Manufacturing date printing
- Bag forming
- Filling into bag
- Bag sealing and cutting
- Finished product conveying
Package and Application:
Video:
Technical Parameters:
| Machine Name | Automatic Liquid Bag Packing Machine |
| Machine Model | LY-LS600 |
| Capacity | 10-50pcs/min |
| Bag Dimension | Width: 60-350mm (2.36-13.78inches) Length: 80-510mm (3.15-20.08inches) |
| Measuring Range | 100-5000g (0.22-11lb) |
| Measure Head | Pump |
| Control System | PLC |
Services:
- Initial needs analysis, solution proposal according to needs
- Technical assessment and prototype verification
- Manufacturing, testing, debugging, pre-setting, shipping and delivering
- 24/7 technical support and life-time after sales service
- Packaging supplies testing and support
- Upgrades and modification support
