Description

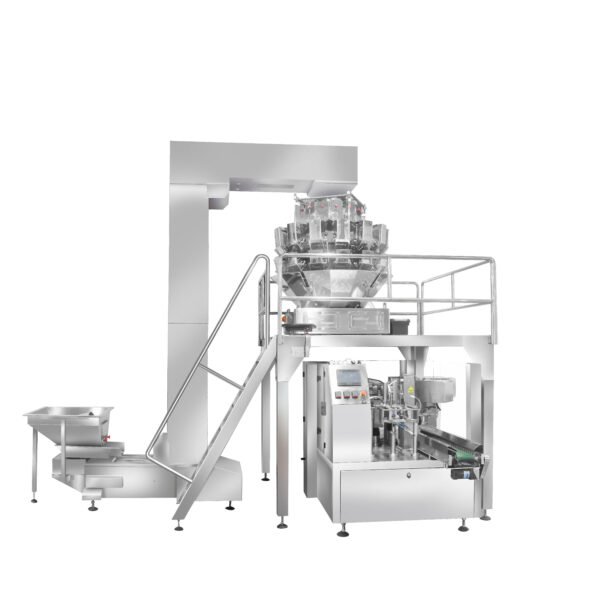

This automatic granules pre-made bags filling machine is applicable for granular raw materials measuring, bags filling and sealing. The rotary working stations conduct bags fetching, bags opening, filling, and sealing to complete the entire filling operation. The multi-head electronic scale weighing system is able to weigh different granular products accurately, with a tolerance rate as low as 0.2%; user can make change on filling weight through system setting change, without the need of parts change. The model is highly compatible with bags of different types, shapes, and sizes, including zipper bag, spout bag, doybag, bottle shaped pouch, four sides sealed bag etc. Providing users the most flexibility to make change on product package if needed. It is widely used in food&beverage, pharmaceutical, nutraceutical and chemical industries.
The machine features with full automatic operation, high capacity production, highly stable performance, accurate measuring, low malfunction rate, and long life-span. It is applicable for the packaging of granular products, such as spices, snacks, cookies, chips, beans, nuts, grain, spices, herbs, pet food, detergent pod etc. The entire machine is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the automatic granules pre-made bags filling machine enhances efficient and continuous production, reduces labor and improves outcome consistency.
Working Flow:
- Granular material feeding
- Granular material weighing
- Bag fetching
- Manufacturing date printing
- Bag opening
- Filling into bag
- Desiccant inserting
- Bag sealing
- Finished product conveying
Package and Application:
Video:
Technical Parameters:
| Machine Name | Automatic Granules Pre-made Bags Filling Machine |
| Machine Model | LY-PBG800 |
| Capacity | 25-60pcs/min |
| Bag Dimension | Width: 80-320mm (3.15-12.59inches) Length: 100-480mm (3.94-18.89inches) |
| Measuring Range | <3000g (6.61lb) |
| Measure Head | Multi-head Electronic Scale |
| Control System | PLC |
Services:
- Initial needs analysis, solution proposal according to needs
- Technical assessment and prototype verification
- Manufacturing, testing, debugging, pre-setting, shipping and delivering
- 24/7 technical support and life-time after sales service
- Packaging supplies testing and support
- Upgrades and modification support
