Automatic Capsule Counting Filling Line

Automatic Capsule Counting Filling Line

The automatic capsule counting and filling line is designed for the automated container filling and capping of capsules, pills, tablets products. The production line is fully automatic, highly efficient, stable, with little malfunction rate and long life-span. It is an ideal packaging solution for medical capsule, supplement capsule, serum capsule etc.

Category:

Description

This automatic capsule counting filling line is applicable for capsules counting, filling into bottles, capping and labeling. It consists of automatic products feeder, multi-channel electronic counting system, container and lid feeding elevator, filling system, desiccant insert device, foil induction sealing system, capping and labeling device. It has a highly accurate multi-channel electronic counting system for capsule, making counting accuracy rate up to 99.8%. Users can adjust counting number easily through control panel. The package size is customizable according to demand. Different levels of automation can be achieved according to needs. It is widely used in the pharmaceutical and nutraceutical industries.

The machine line is featuring with full automatic operation, high capacity production, highly stable performance, accurate counting, low malfunction rate, and long life-span. Applicable for bottles filling of medical capsule, supplement capsule, facial capsule, other capsule, tablet, pill etc. The entire line is under advanced PLC system control. With a user interface for easy adjustments and monitoring, the automatic capsule counting filling line enhances efficient and continuous production, reduces labor and improves outcome consistency.

Working Flow:

  1. Capsule feeding
  2. Capsule counting
  3. Container and lid feeding
  4. Filling into container
  5. Desiccant inserting
  6. Induction foil sealing
  7. Lid capping
  8. Container labeling
  9. Manufacturing date printing
  10. Weight checking (if needed)
  11. Finished product conveying

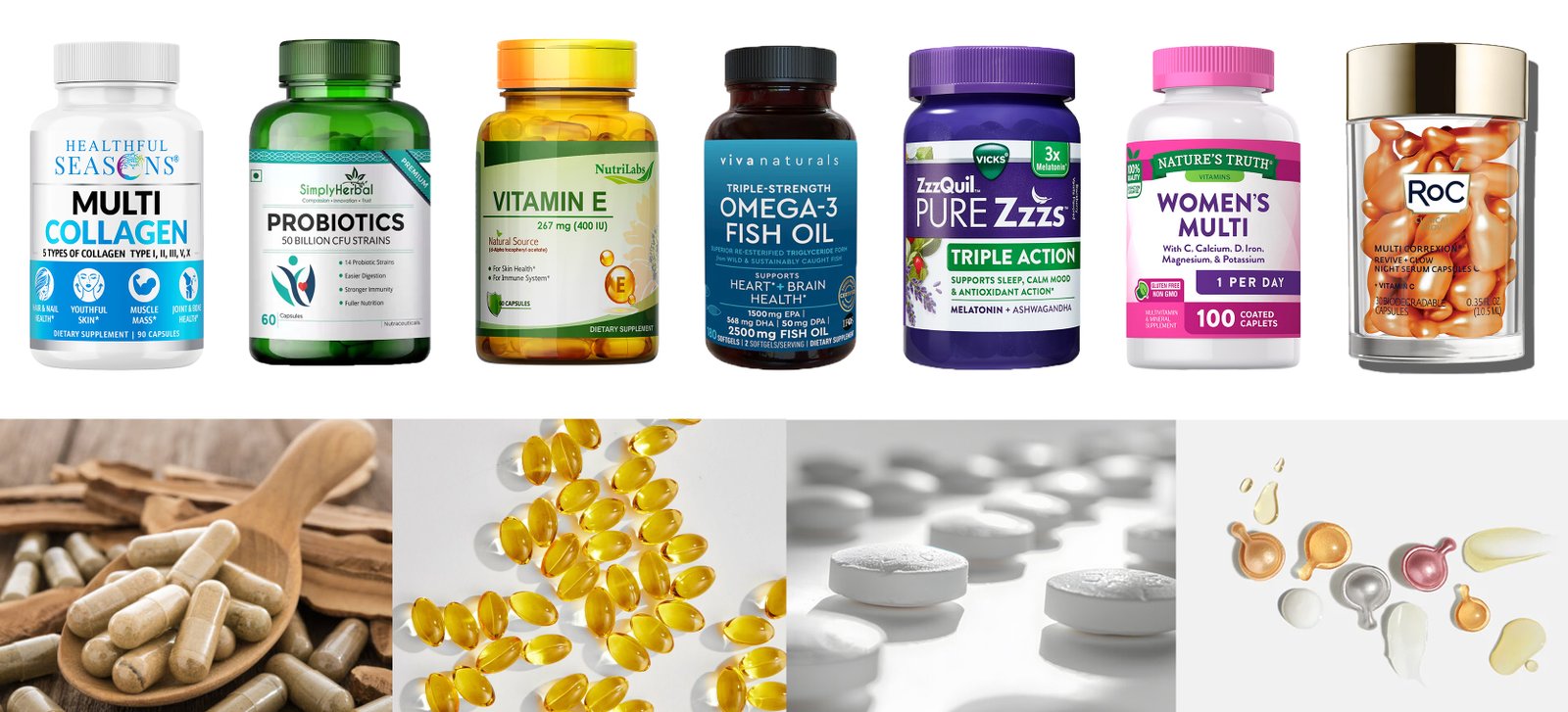

Package and Application:

liyangmachinery automatic capsule counting filling line application

Video:

Technical Parameters:

Machine NameAutomatic Capsule Counting Filling Line
Machine ModelLY-CL1000
Capacity25-75pcs/min
Package DimensionBottle volume: 15-750ml
Bottle height: 10-650mm
Foil seal: Φ20-130mm
Counting RangeΦ5.5-22 capsule 8-9999pcs
Accuracy rate: >99.8%
Measure HeadElectronic counting
Control SystemPLC

Services:

  1. Initial needs analysis, solution proposal according to needs
  2. Technical assessment and prototype verification
  3. Manufacturing, testing, debugging, pre-setting, shipping and delivering
  4. 24/7 technical support and life-time after sales service
  5. Packaging supplies testing and support
  6. Upgrades and modification support
